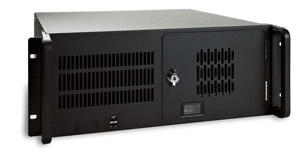

SPECTIVA - HP

Tip: digitalni video strežnik

Opis:
8 ali 16 video vhodov

Podrobnosti:
SPECTIVA 8 HP
Video inputs: 8
Loopthrough: Yes
Audio channels: 8 mono
Spot monitors: 2
Audio channels (bi-directional): 1
Alarm inputs (optoisolated): 16
Auxiliary outputs (relay): 16
Operator interface: VGA/CVBS
Internal storage archive: 1TB native
Raid5 archive with hot swap disks: Yes
Recording speed: 100/120 IPS*
Resolution: 720x576/720x480*
IPS per camera: From 1 IPS to 25/30 IPS*
Recording compression algorithms: Wavelet
Trasmission compression algorithms: Wavelet / Delta Wavelet
Ethernet ports: Gigabit
USB port: Yes (v2.0)
Serial interface: RS.232
Keyboard / Mouse port: PS/2
Operating system: XP Embedded
Main processor: Intel P4
Power supply: 110 / 220 VCA ± 10%
Power consumption: 300 W
Operating temperature: 5 – 50 °C
Relative humidity: 8 – 90% non condensing
Weight: 20Kg
Dimensions: 435 x 550 x 177 mm

SPECTIVA 16 HP
Video inputs: 16
Loopthrough: Yes
Audio channels: 8 mono
Spot monitors: 4
Audio channels (bi-directional): 1
Alarm inputs (optoisolated): 16
Auxiliary outputs (relay): 16
Operator interface: VGA/CVBS
Internal storage archive: 1TB native
Raid5 archive with hot swap disks: Yes
Recording speed: 100/120 IPS*
Resolution: 720x576/720x480*
IPS per camera: From 1 IPS to 25/30 IPS*
Recording compression algorithms: Wavelet
Trasmission compression algorithms: Wavelet / Delta Wavelet
Ethernet ports: Gigabit
USB port: Yes (v2.0)
Serial interface: RS.232
Keyboard / Mouse port: PS/2
Operating system: XP Embedded
Main processor: Intel P4
Power supply: 300 W
Power consumption: 110 / 220 VCA ± 10%
Operating temperature: 5 – 50 °C
Relative humidity: 8 – 90% non condensing
Weight: 20Kg
Dimensions: 435 x 550 x 177 mm
